Kayco

Medallion

Superior Performance Series

OUR MOST VERSATILE MODEL YET.

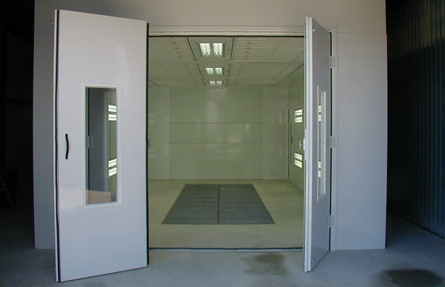

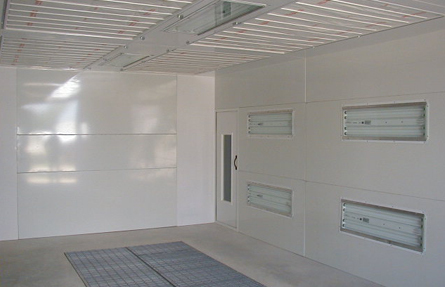

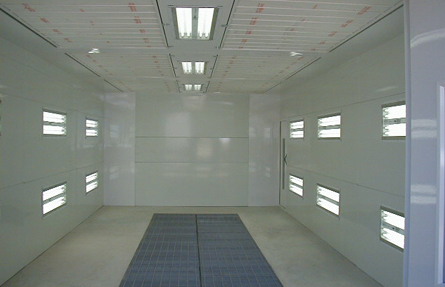

The Medallion series is superior in design and structure because it can conform to almost any configuration. The standard model is a single-skin, down-draft cabin with drop down ceiling filters. Optional equipment include an insulating package as well as an exhaust chamber that makes the booth a pitless down-draft and eliminates the need for concrete excavation.
[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9mZWF0dXJlZF9pbWFnZSIsInNldHRpbmdzIjp7fX0=@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”580px” max_width_tablet=”540px” max_width_phone=”540px” max_width_last_edited=”on|desktop” module_alignment=”center” height=”400px” height_tablet=”300px” height_phone=”” height_last_edited=”on|phone” custom_padding=”|||20px|false|false” custom_padding_tablet=”|||0px|false|false” custom_padding_phone=”|||0px|false|false” custom_padding_last_edited=”on|tablet” hover_enabled=”0″ global_colors_info=”{}” theme_builder_area=”et_body_layout” sticky_enabled=”0″][/dmpro_image_hotspot]
[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzEiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]
[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzIiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|phone” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]
[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzMiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

Option 1 Front/Right & Left/Back

Option 2 Front/Right & Left/Back

Option 3 Front/Right & Left/Back

Standard Features

  • Single-skin down-draft cabin
  • Drop down ceiling filters
  • Powder coated white
  • 15 lights (color corrected bulbs)
  • 14′ wide x 9′ x 27′ long

Optional Features

  • Down draft
  • Pitless down draft
  • Insulating skin

Exhaust
  • 36” diameter tube axial non-sparking fan
  • 3 HP 3 phase motor
  • Double row pit for better overspray evacuation
  • Exhaust filters rated 98% efficient
  • 14,000 CFM @ ½” static pressure

Lighting
  • 15 light fixtures (48” 4 tube T8 ballasts) color corrected bulbs included
  • 15 clear tempered glass windows for maximum light output

Intake
  • Blanket type intake filters rated at 85% efficient on 10 micron dust particles
  • 1.5 million BTU heater @ 14,000 CFM
  • Digital remote mounted control panel
  • Exhaust filters rated 98% efficient
  • Digital remote mounted control panel

We are dedicated to superior customer service before, during and after the sale.

Questions? Call us at 800-529-2640
