K Tech

KT27SDD

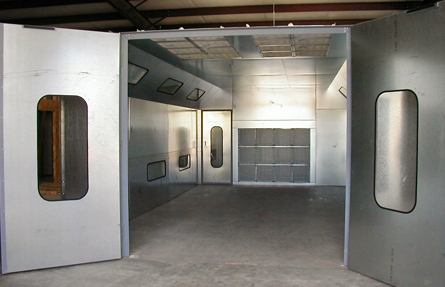

Semi Down Draft Spray Booth

A VERSATILE OPTION FOR COLLISION CENTERS.

The Kayco semidown-draft spray booth disperses fresh air through the booth vertically and horizontally allowing efficient surface flow across a vehicle and easy exhaust through the rear filter. The semidown-draft spray booth can be customized to fit virtually any requirements including positive pressure and heat.

Download Datasheet

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9mZWF0dXJlZF9pbWFnZSIsInNldHRpbmdzIjp7fX0=@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”580px” max_width_tablet=”540px” max_width_phone=”540px” max_width_last_edited=”on|desktop” module_alignment=”center” height=”400px” height_tablet=”300px” height_phone=”” height_last_edited=”on|phone” custom_padding=”|||20px|false|false” custom_padding_tablet=”|||0px|false|false” custom_padding_phone=”|||0px|false|false” custom_padding_last_edited=”on|tablet” hover_enabled=”0″ global_colors_info=”{}” theme_builder_area=”et_body_layout” sticky_enabled=”0″][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzEiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzIiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|phone” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzMiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

Option 1 Front/Back & Right/Left

Option 2 Front/Back & Right/Left

Option 2 Exploded View

Standard Features

14′ wide x 9′ tall x 27′ long inside dimensions
Galvanized finish
8 lights (bulbs not included)
30” fan
Swing type doors with observation windows
Personal door with observation window
20” x 20” intake and exhaust filters

Optional Features

Powder coated white
Personal door in side wall
Bridge type exhaust
Additional lighting
Heated air make up unit
Drive-thru
Upgrade to tri-fold doors

Exhaust

30” diameter double ring exhaust fan with non-sparking blades. Adjustable pulley for air flow adjustment. Low decibel rating offers greater working comfort.
3 HP 3 PH open drip proof ball bearing motor
Fiberglass exhaust filters that are rated at 98% efficient

Lighting

8 light fixtures (48” 4 tube T8 ballasts) bulbs not included
8 clear tempered glass windows for maximum light output
Horizontal layout for better distribution

Intake

Intake filters are located in plenum above door
