KT27DD

Down Draft Spray Booth

Request A Quote

Order Replacement Parts

DESIGNED FOR SUPERIOR AIR FLOW AND MAXIMUM EFFICIENCY.

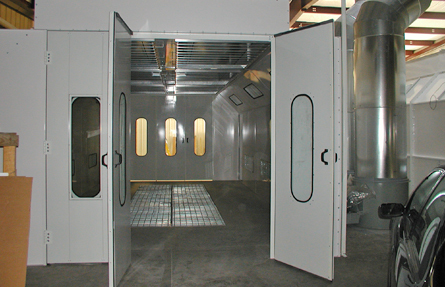

The Kayco Down-Draft Spray Booth intakes fresh air from the top levels of the shop, filters the air down and away from the vehicle, and exits the booth through an exhaust pit in the floor. Also available in a drive-thru design. And can be customized to include powder coated white, heated air make up unit, and an above ground basement.
Download Datasheet

Front/Right & Back Left

Front and Top View

Exploded View

Standard Features

  • 14′ wide x 9′ tall x 27′ long inside dimensions
  • Single row pit in floor
  • 8 lights (bulbs not included)
  • 2 24” fans 2 HP
  • Galvanized finish
  • Swing type doors with observation windows
  • Personal door with observation window

Optional Features

  • Powder coated white
  • Drive-thru
  • Tri-fold door upgrade
  • Additional lighting
  • Double-row pit upgrade
  • Heated air make up unit
  • Pre-filter plenum

Exhaust
  • 36” diameter tube axial non-sparking fan
  • 3 HP 3 PH motor
  • Single row for overspray evacuation
  • 14,000 CFM @ ½” static pressure

Lighting
  • 8 light fixtures (48” 4 tube T8 ballasts) bulbs not included
  • 8 clear tempered glass windows for maximum light output
  • Horizontal layout for better distribution

Intake
  • Intake filters located in ceiling
