KT27CD

Cross Draft Spray Booth

DESIGNED AS AN EFFICIENT ECONOMY MODEL FOR THE SMALL COLLISION SHOP.

The Kayco cross-draft spray booth disperses fresh air across the automobile and eliminates airborne paint, particles and hazardous fumes through the filters in the rear of the booth. Also available in a reverse-flow design, the Kayco Cross-Draft Spray Booth can be modified to include 10 or 12 light options.

Download Datasheet

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9mZWF0dXJlZF9pbWFnZSIsInNldHRpbmdzIjp7fX0=@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”580px” max_width_tablet=”540px” max_width_phone=”540px” max_width_last_edited=”on|desktop” module_alignment=”center” height=”400px” height_tablet=”300px” height_phone=”” height_last_edited=”on|phone” custom_padding=”|||20px|false|false” custom_padding_tablet=”|||0px|false|false” custom_padding_phone=”|||0px|false|false” custom_padding_last_edited=”on|tablet” hover_enabled=”0″ global_colors_info=”{}” theme_builder_area=”et_body_layout” sticky_enabled=”0″][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzEiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzIiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|phone” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

[dmpro_image_hotspot img_src=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoiY3VzdG9tX21ldGFfcHJvZHVjdHNfZXh0cmFfaW1hZ2VzX3Byb2R1Y3RzX2V4dHJhX2ltYWdlXzMiLCJzZXR0aW5ncyI6eyJiZWZvcmUiOiIiLCJhZnRlciI6IiIsImVuYWJsZV9odG1sIjoib2ZmIn19@” _builder_version=”4.22.1″ _dynamic_attributes=”img_src” _module_preset=”default” width=”100%” max_width=”445px” max_width_tablet=”445px” max_width_phone=”445px” max_width_last_edited=”on|tablet” module_alignment=”center” height=”300px” height_tablet=”” height_phone=”” height_last_edited=”on|desktop” custom_margin=”||||false|false” custom_margin_tablet=”||||false|false” custom_margin_phone=”||||false|false” custom_margin_last_edited=”on|tablet” custom_padding=”15px|15px|15px|15px|true|true” custom_padding_tablet=”10px|10px|10px|10px|true|true” custom_padding_phone=”10px|10px|10px|10px|true|true” custom_padding_last_edited=”on|phone” locked=”off” global_colors_info=”{}” theme_builder_area=”et_body_layout”][/dmpro_image_hotspot]

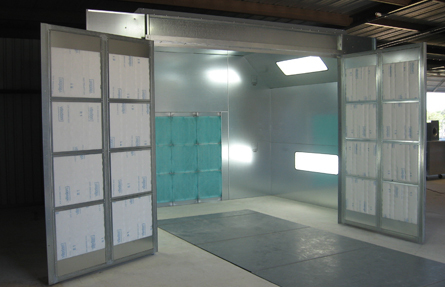

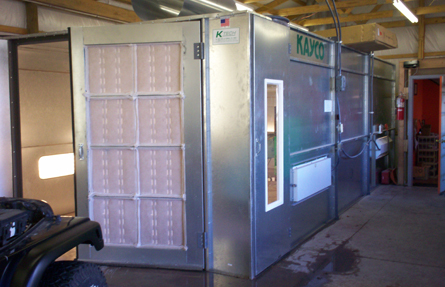

Front/Right & Back/Left

Back Wall & Back View

Left View

Standard Features

14′ wide x 9′ tall x 27′ long inside dimensions
Galvanized finish
8 lights (bulbs not included)
30” fan
Filtered doors
Personal door with observation window

Optional Features

Reverse flow
Powder coated white
Personal door in side wall
Bridge type exhaust
Additional lighting

Exhaust

30″ diameter double ring fan with non-sparking blades. Adjustable pulley for air flow adjustment. Low decibel rating offers greater working comfort.
3 HP 3 PH open drip proof ball bearing motor
Fiberglass exhaust filters that are rated at 98% efficient

Lighting

8 light fixtures (48″ 4 tube T8 ballasts) bulbs not included
8 clear glass windows for maximum light output
Horizontal layout for better distribution

Intake

Intake filters that are 95% efficient on 10 micron dust particles
Intake filters are located in the vehicle entry doors
